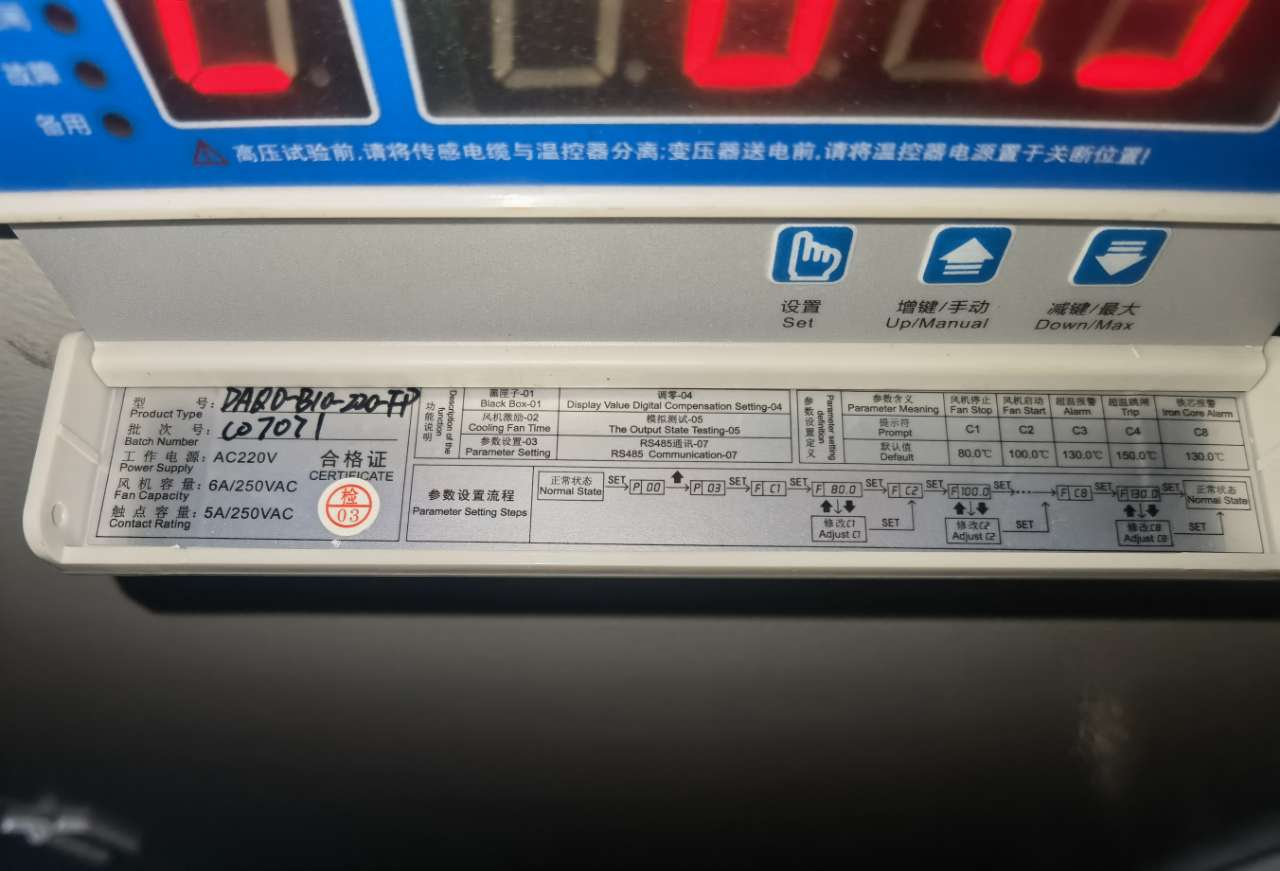

DAQ0-B10-220-FP Innotek Dry-type Transformer Thermostat

Product Overview

• useDAQO-B10-220 is an intelligent temperature monitoring and control system specially designed for dry-type transformers. It realizes temperature display, over-temperature alarm, fan start/stop control and fault protection by real-time collection of temperature data from transformer windings to ensure safe and stable operation of the transformer and prolong the life of the equipment.
• Operating powerAC220V±10%, supporting a wide range of voltage fluctuations, adapting to different grid conditions, with an operating frequency of 50Hz or 60Hz.

Product Features

• High Reliability Design
  • High anti-interference capabilityThe EMC (Electromagnetic Compatibility) design is compliant with the standard, and can withstand grid harmonics, electromagnetic radiation and other interference, ensuring stable operation in complex industrial environments.
  • Industrial grade materialThe shell is made of flame retardant ABS engineering plastic, dustproof, moisture-proof, anti-impact, high protection level, suitable for indoor installation.
• Flexibility and Ease of Use
  • Convenient installation: Panel mounting, standard with mounting brackets and terminals, simple wiring, quick access to the transformer temperature control system.
  • Maintenance-free design: No mechanical moving parts, stable and reliable long-term operation, reducing operation and maintenance costs.
  • high compatibilityIt can be connected with transformer comprehensive protection device and SCADA system to realize remote monitoring and data uploading.
• Energy efficiency and safety at the same time
  • Intelligent Fan ControlStarting and stopping the fan on demand avoids ineffective operation, reduces energy consumption and noise, and extends the service life of the fan.
  • Multiple protection mechanismsIn addition to over-temperature alarm/trip, it also has the functions of power supply under-voltage protection and output relay contact protection, etc., which can guarantee the safety of the system in an all-round way.

Function

• Multi-Channel Temperature MonitoringThe temperature of the windings can be monitored in 3 ways (A, B and C phases) at the same time, and the temperature value of each phase and the maximum value are displayed in real time, which accurately reflects the operation status of the transformer.
• Intelligent control and protectionWhen the temperature exceeds the alarm threshold (e.g. 130℃), an acousto-optic alarm signal will be output; if the temperature further rises to the trip threshold (e.g. 150℃), a trip signal will be output immediately to cut off the power supply.
• Automatic fan start/stop: When the temperature of any phase reaches 100℃, it will be turned on automatically.Cooling FansWhen the temperature drops to 80℃, the fan is automatically turned off, which is energy-saving and efficient.
• Troubleshooting and AlarmsWith sensor fault diagnosis function, when the sensor is disconnected or short-circuited, it will automatically alarm and display the fault phase, so as to facilitate rapid localization and maintenance.

application scenario

• power system: It is suitable for the temperature protection of distribution transformers and power transformers to ensure the safe power supply of the power grid.
• Industrial: It can be applied to dry-type transformers in metallurgy, chemical industry, mining and other industries to cope with harsh environments such as high dust and high humidity.
• Architecture and Business: Dry-type transformers in high-rise buildings, data centers, shopping malls, etc. to ensure power supply reliability.
• New Energy Sector: Dry-type transformers in new energy projects such as photovoltaic and wind power, adapting to the needs of temperature monitoring in outdoor or complex environments.

• BWDK Series Dry-type Transformer Temperature Controller Product ManualThe manual introduces the BWDK series dry-type transformer computer temperature control box, which adopts advanced single-chip computer and utilizes the Pt100 platinum thermistor pre-embedded in the three-phase windings of the dry-type transformer to detect and display the temperature rise of the transformer windings. The manual contains product overview, technical specifications, installation instructions, function introduction, etc. In terms of technical specifications, the measurement range is - 30℃～240℃, resolution is 0.1℃, measurement accuracy is ±1% FS, etc. The manual also contains the information of the temperature rise of the transformer windings.
• IB-Q201 Dry-type Transformer Thermostat BrochureIB-Q201 dry-type transformer temperature controller has many models, such as IB-Q201D, IB-Q201E, IB-Q201F, etc. The functions of different models are different. For example, IB-Q201D has the functions of three-phase circuit display/maximum value display, automatic/manual start/stop of fan, over-temperature alarm, etc.; IB-Q201E adds three or four independent 4-20mA analog current outputs on the basis of IB-Q201D. The manual introduces the technical specifications of the products, etc. It also introduces the model selection instructions, etc.
• BWDK-Q201 Dry-type Transformer Thermostat Product ManualBWDK-Q201 dry-type transformer thermostats are similar to IB-Q201 series, with various functional models, such as BWDK-Q201D, BWDK-Q201E, BWDK-Q201F and so on. Their technical specifications include ambient temperature - 20℃~+55℃, operating voltage AC 220V (+10%, -15%), measuring range - 30.0℃~240.0℃, etc. The manual provides information on model selection and technical specifications. The manual provides detailed instructions for model selection, technical specifications, and installation procedures.
